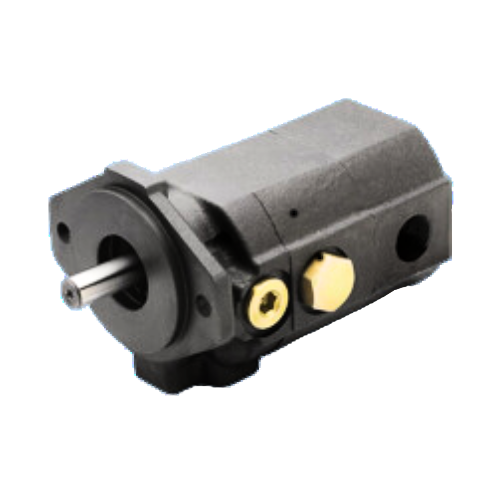

GP-CBN-280-P-C | Anfield 28 GPM 2-Stage Pump

Anfield 28 GPM 2-Stage Pump

Mount 2 bolt SAE A
Shaft 5/8" dia. x 1-1/2" long keyed
Inlet Port 1" NPT
Outlet Port 3/4" NPT
Displacement: 0.465 cu. in. / rev. HI press. stage, 1.395 cu. in. / rev. LO press. stage
Rotation CW
Pressure: 3000 PSI max.
Speed: 3600 RPM max.
Flow: 7 GPM HI press. stage, 28 GPM LO press. stage
